Before you send an RFQ
Having these ready gets you a faster, more accurate quote.
Applications

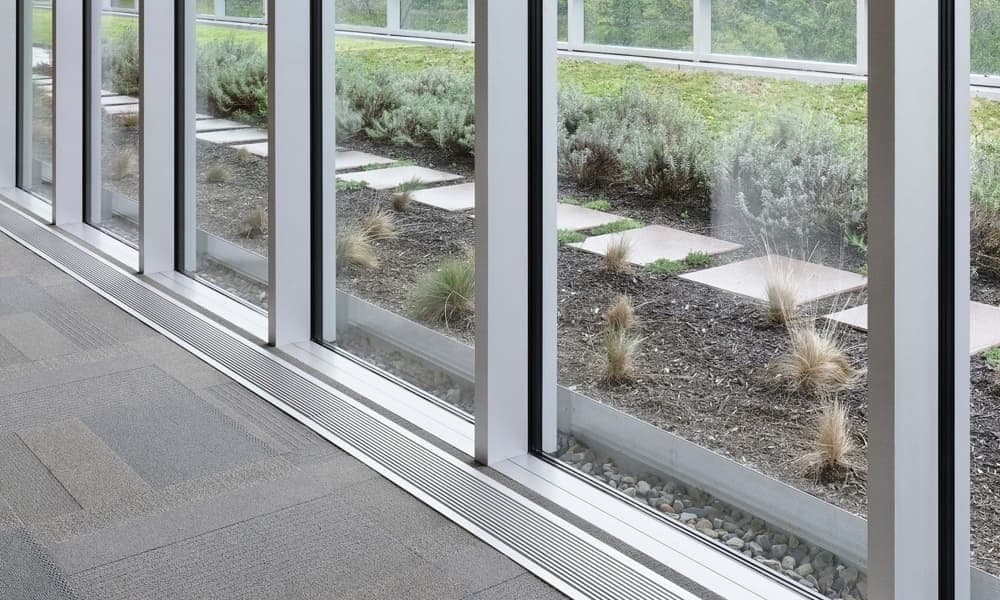

Window systems
Insulated frames and sashes for residential and commercial windows.
Door systems
Thermally broken entrance and balcony door profiles.

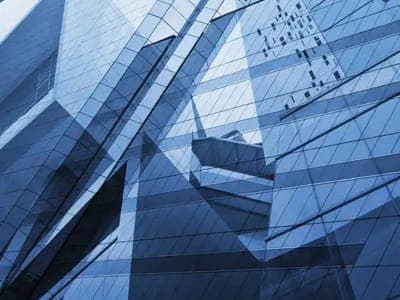

Façade infill
Insulated framing that pairs with curtain wall systems.
Specifications
| Parameter | Typical range |
|---|---|
| Alloy grades | 6063 / 6060 |
| Temper | T5 / T6 |
| Profile length | up to 12,000 mm |
| Wall thickness | from 0.7 mm (down to 0.3 mm for small-section →) |
| Thermal break | Polyamide strip (to your system) |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Anodized / Powder-coated / Wood-grain |
From enquiry to production
Secondary machining and finishing are handled as in-house services — CNC & machining · Finishing.
Quality & certification
- — Material traceability by heat and lot
- — Dimensional inspection reports
- — Salt-spray & coating-thickness testing
- — Third-party certification on request
Certificate numbers and copies are available on request.
Frequently asked questions
Do you supply the profiles only, or the assembled thermal break too?
We extrude the aluminium profiles and can carry out the thermal-break assembly to your system. Tell us whether you need bare profiles or the assembled thermal-break bar and we scope it in the quote.
Can you match our existing window/door system?
Yes — we extrude to your die or drawing, so the frame and sash sections match your system. Send the profile drawings or a sample and we confirm feasibility.
Which finishes suit exterior window frames?
Anodizing, powder coating and wood-grain finishes are all available in-house. For exterior exposure we can advise on the coating and any warranty considerations for your market.
What thermal performance can you achieve?
The Uf value depends on your system design, cavity and glazing rather than the profile alone. Share your target Uf and system detail and we confirm the profile and thermal-break approach to suit.
