Before you send an RFQ
Having these ready gets you a faster, more accurate quote.
Applications

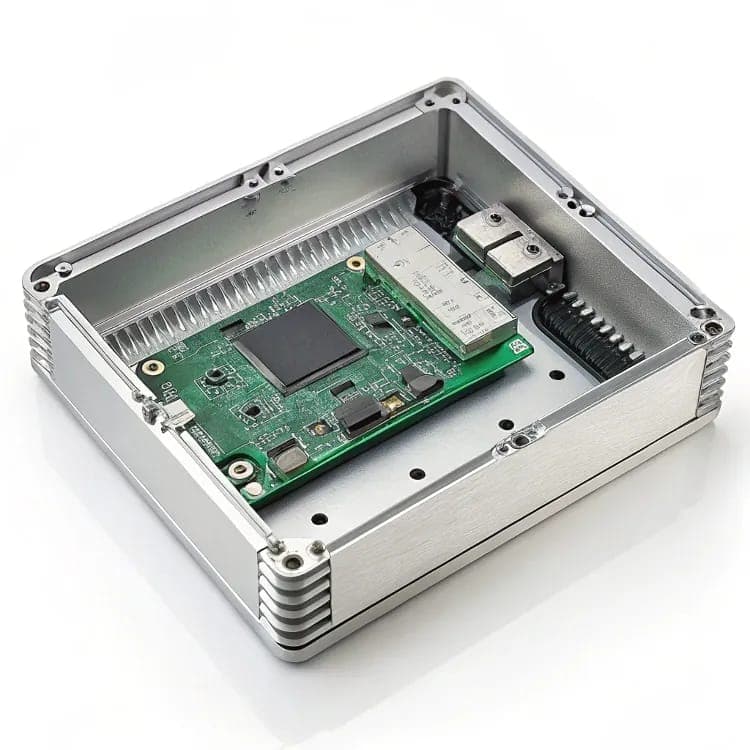

Instrument & device housings
Extruded bodies for controllers, drivers and instrument cases.

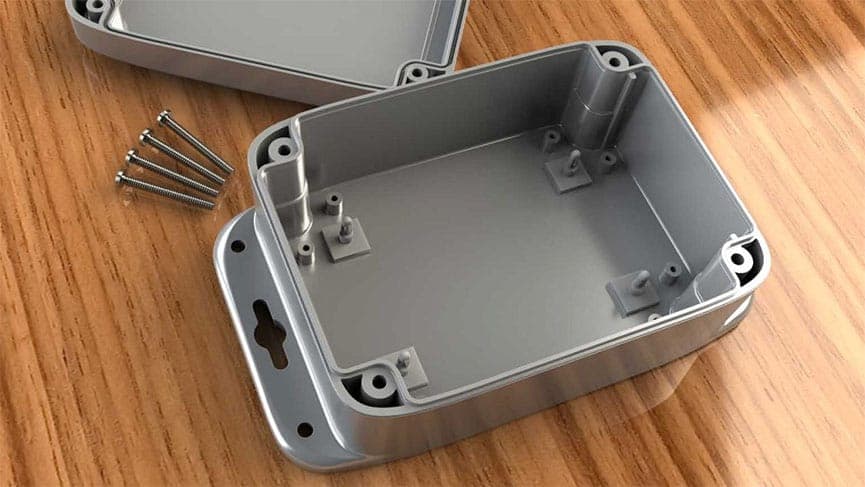

Power & electrical enclosures
Housings for power supplies, converters and electrical assemblies.

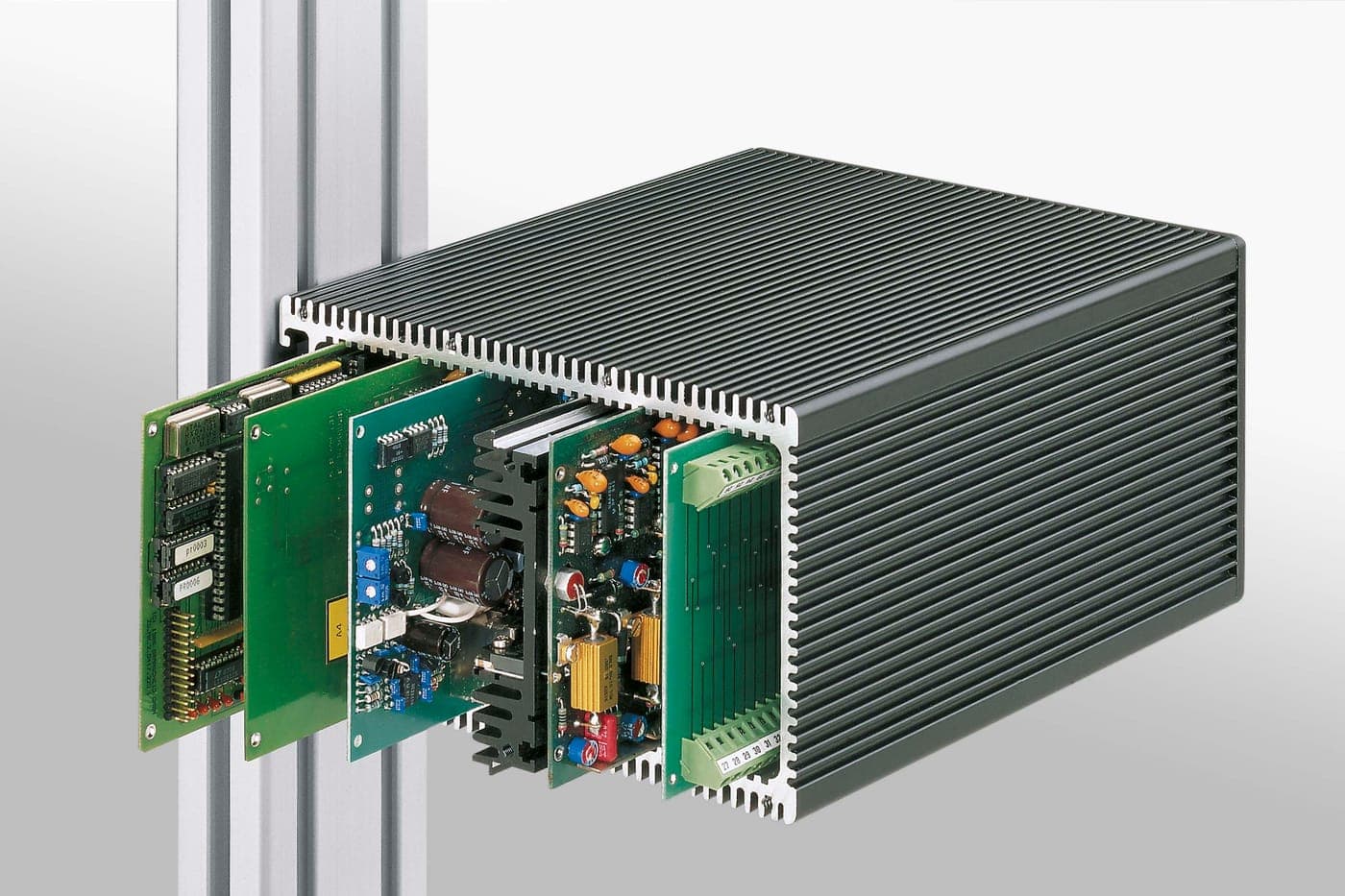

PCB & module cases
Enclosures with internal guide slots to seat and protect circuit boards.
Specifications
| Parameter | Typical range |
|---|---|
| Alloy grades | 6063 / 6060 |
| Temper | T5 / T6 |
| Profile length | up to 12,000 mm / cut-to-length |
| Wall thickness | from 0.7 mm (down to 0.3 mm for small-section →) |
| Board guide slots | to your PCB spacing |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Mill / Anodized |
From enquiry to production
Secondary machining and finishing are handled as in-house services — CNC & machining · Finishing.
Quality & certification
- — Material traceability by heat and lot
- — Dimensional inspection reports
- — Salt-spray & coating-thickness testing
- — Third-party certification on request
Certificate numbers and copies are available on request.
Frequently asked questions
Why an extruded aluminium enclosure instead of a sheet-metal or plastic box?
An extruded aluminium enclosure gives a seamless one-piece body with integral board guides, good rigidity and natural heat dissipation and EMI shielding — useful for electronics that run warm. A sheet-metal or plastic box can be cheaper for very simple, low-heat, low-shielding cases; send your requirement and we help you weigh it up.
Can you machine the cut-outs, connector ports and end plates?
Yes — end machining, cut-outs, ports and mounting holes are handled as our CNC & machining service, and anodizing as our finishing service, so the enclosure ships ready to fit. Send the drawing marking the openings.
Can you extrude a compact, thin-wall enclosure section?
Yes — this is where our small-section extrusion capability helps, down to a 2 mm circumscribing circle and 0.3 mm wall on suitable sections. Send the section and we confirm what is extrudable.
Can you make it sealed / weatherproof?
Sealing depends on your gasket, end-cap and joint design rather than the extrusion alone. Tell us the ingress requirement and we confirm the profile features (gasket grooves, end-cap fit) needed to support it.
